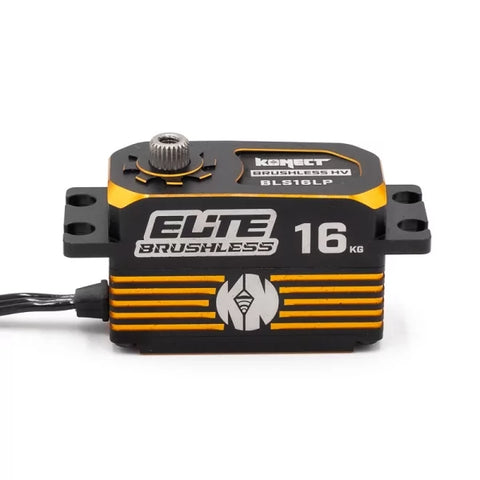

Servo Konect Elite LowProfil brushless 16Kg/0.07s-7.4V programmable

Specifications

Dimensions

* Length: 40 mm

* Width: 20 mm

* Height: 25 mm

* Total weight: 56 g

Servo

* Deadband: 1 μs

* Pulse range: 900–2100 μs

* Operating frequency: 1520 μs / 330 Hz

* Motor: Brushless

* Speed at 6 V / 7.4 V: 0.08 / 0.07 sec/60°

* Torque at 6 V / 7.4 V: 13 / 16 kg·cm

* Operating angle: 120°

* Housing: Plastic and aluminum
